  MOTOR EXPLOSÃO OS .46LA 2T RC SILVER C/ESCAPE E3030
MOTOR EXPLOSÃO OS .46LA 2T RC SILVER C/ESCAPE E3030
Cod.: OS13393 | Fabricante: OS Engines |
Peso: 350g |
Preço: R$ 764,83 + Frete
Requer: VELA OS A3 OU A8

Cilindrada: 7.64cc (0.467cu.in)
Potência: 1.2ps/15,000r.p.m.
Diâmetro do pistão: 23.0mm (0.906in.)
Curso do pistão: 18.4mm (0.724in.)
Faixa de rotação: 2,000-16,000r.p.m.
Peso: 272g

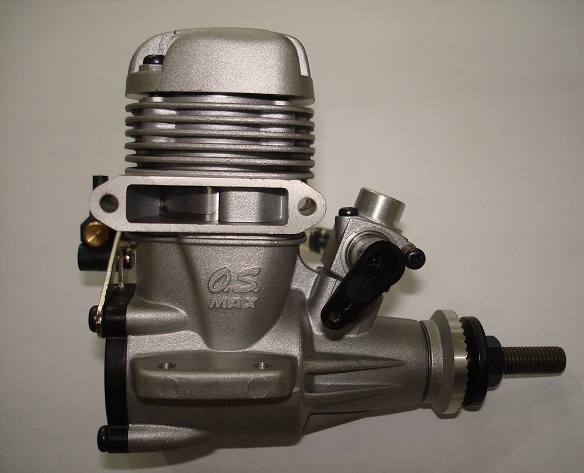

This is the .46LA engine from O.S. Max designed for sport airplane use.
This is a non-ringed engine with a Two-Year Warranty.
This engine has a natural finish w/\\\\\\\"O.S.\\\\\\\" & \\\\\\\"46LA\\\\\\\" on the side.

FEATURES

1-piece crankcase
Crankshaft is set in one long bronze Oilite bushing (no bearings)
Schnuerle porting (AKA Schnuerle scavenging)
Side exhaust

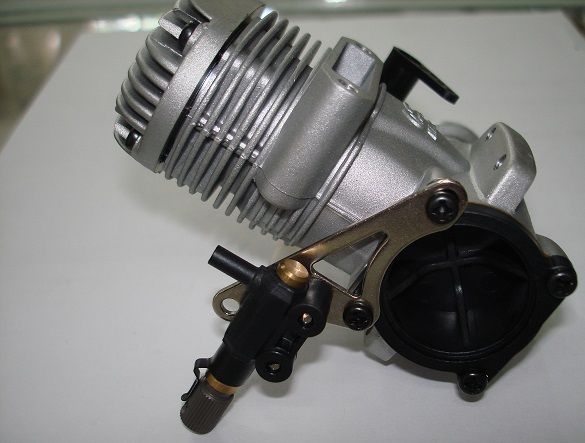

Nylon backplate with remote needle valve

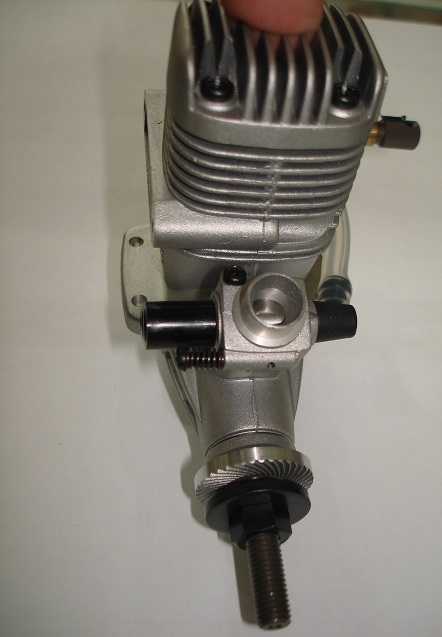

40D carburetor
Aluminum piston with Nickel-plated brass cylinder liner.

INCLUDES

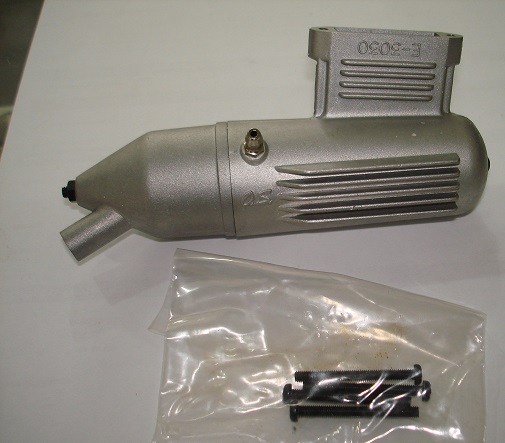

One expansion-style muffler #E-3030
One instruction manual and sticker sheet
One assembled engine with glow plug
Two 3x30mm phillips head screws to bolt muffler to engine

SPECIFICATIONS

Construction: Aluminum 1-piece crankcase, piston, cylinder head
Bore: 23.0mm (0.906\\\\\\\")
Stroke: 18.4mm (.724\\\\\\\")
Horsepower: 1.2 PS, 1.18 HP at 15,000 RPM
Distance from remote needle to end of crankshaft: 4.5\\\\\\\" (114mm)
Distance from center of engine to drive hub: 2.0\\\\\\\" (51.2mm)
Distance from center of engine to end of crankshaft: 3.0\\\\\\\" (76.3mm)
Height from crankcase bottom to top of cylinder head: 3.3\\\\\\\" (84.7mm)
Height/crankshaft center to top of cylinder head: 2.7\\\\\\\" (69mm)
Width including mounting ears: 1.9\\\\\\\" (48mm)
Width not including mounting ears: 1.2\\\\\\\" (32mm)
Width between mounting holes same side: 0.69\\\\\\\" (17.5mm)
Width between mounting holes opposite side: 1.6\\\\\\\" (40.5mm)
Width between muffler mounting holes: 1.4\\\\\\\" (36mm)
Width of exhaust opening: 1.1\\\\\\\" (29mm)
Height of exhaust opening: 0.3\\\\\\\" (7mm)
Diameter of muffler body: 1.3\\\\\\\" (33.5mm)
Angle of muffler in relation to engine: 4°
Weight: 272g (9.6oz without muffler)
Crankshaft Thread Size: 1/4-28
Recommended Props: Break In: 11x6
Trainer and Sport Models: 11x6, 11x7
Scale Models: 12x5, 12x6
Practical RPM Range: 2,000 - 16,000 RPM (This engine will not turn
this many RPM on the ground) RPM curve is when the engine unloads.

REQUIRES Fuel with 5% - 15% Nitromethane and 18% (minimum) oil content
(Most of the 5%-15% fuels we carry meet these requirements)

COMMENTS

The factory setting of the needle valves are as follows:
High speed needle: Turn all the way in and back out 2 turns.
Air Bleed screw: Turn all the way in and back out 2 turns.
The coverplate for the FX Series will NOT work on this engine.
