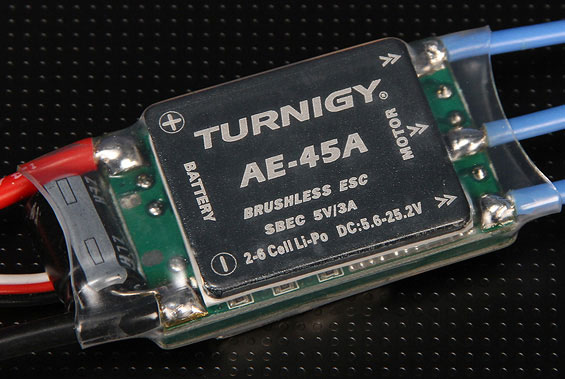

  SPEED CONTROL ESC 45A CONTROLADOR DE VELOCIDADE TURNIGY P/ BRUSHLESS ESC
SPEED CONTROL ESC 45A CONTROLADOR DE VELOCIDADE  TURNIGY P/ BRUSHLESS ESC
Cod.: TURNAE45A | Fabricante: TURNIGY |
Preço: R$ consulte! + Frete
PARA HELIMODELOS e AEROMODELOS.BATERIAS LIPO 2 a 6 CELULAS
A quality SMT produced ESC with reliable components.

The Turnigy AE series are based on new powerful microprocessor.

The new CPU means ultra fast sync timing, crisper throttle response, less battery load and reduced FET heat buildup. Also there is a separate voltage regulator IC for microprocessor providing good anti-jamming capability.



Specification:

Output: Continuous 45A, burst 50A up to 10 seconds.

Input Voltage: 2-6 cells lithium battery or 5-18 cells NIMH battery.

BEC: Linear 3A @ 5V

Control Signal Transmission: Optically coupled system.

Max Speed:

2 Pole: 210,000rpm

6 Pole: 70,000rpm

12 Pole: 35,000rpm

Size: 60mm (L) * 26mm (W) * 11mm (H).

Weight: 43g.



Features:

High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.

Wide-open heatsink design to get the best heat dissipation effect.

Improved Normal, Soft, Very-Soft start modes, compatible with aircraft and helicopter.

Smooth, linear, quick and precise throttle response.

Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection

Programable via transmitter



Programming features:

Brake setting (we recommend using brake for only folding props applications)

Battery type(Li-xx or Ni-xx)

Low voltage cutoff setting

Factory default setup restore

Timing settings (to enhance ESC efficiency and smoothness)

Soft acceleration start ups (for delicate gearbox applications)

Low voltage cutoff type (power reduction orirnmediate shutdown)



Factory default settings:

Brake: off

Battery type: Li-xx (Li-ion or Li-Po)

Low voltage cutoff threshold: Soft cut-off (2.6V)

Timing setup: Low

Soft Acceleration Start Up: Normal

Low voltage cutoff type: Medium
